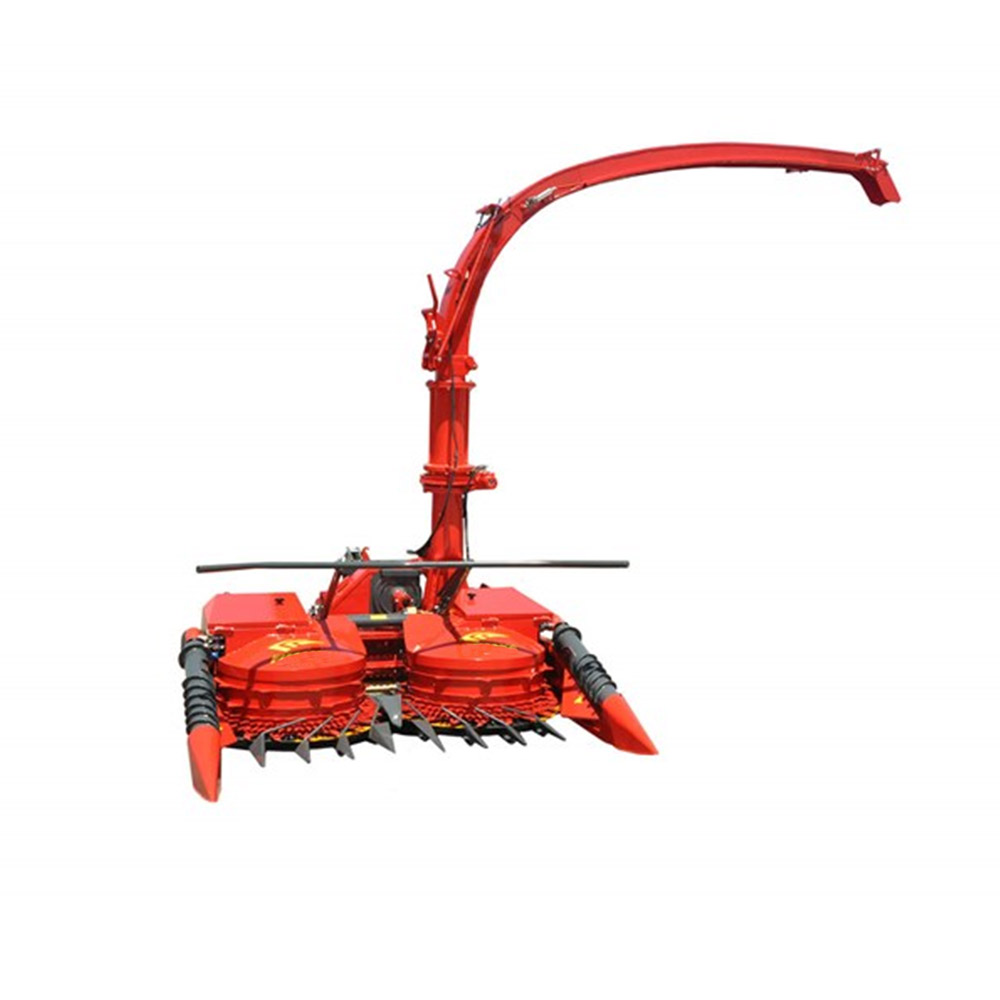

Double Row Independent Corn Silage Machine has a working width of 1.25 m. Thanks to its cutter and feeder drums, it can take two rows at once. The most important feature of the 2-Row - Row Independent Silage Machine is its collapsible chassis. The feature of folding back of the Two-Row Independent Corn Forage Harvester reduces the number of turns in the field by providing a path in the field. Thanks to this feature, it is possible to prevent the corn from being crushed by the tractor and wasted in the field.
The cutter and feeder drums of the 2-Row - Row Independent Silage Machine cut the corn and ensure that it is transmitted to the feeder unit. The feeder unit provides the best quality shredding by feeding the fan at the right angle thanks to the shredder blades on it. The fan, which has 12 specially hardened blades on it, runs at approximately 1400 rpm. is returning quickly. There are two feeder drums and two printing drums that allow the corn to go to the shredder fan. The pressure drums are positioned horizontally just in front of the shredder fan so that the stem and cobs of the corn plant are delivered to the shredder fan at right angles.
In order to protect the feeding unit of the Double Row Independent Corn Silage Machine against stone and soil intake, an easily accessible safety bolt has been added inside the machine. This bolt protects the feeding unit against stone and soil pick-up during harsh working conditions. The wheel height can be adjusted during operation in order to prevent stone and soil pick-up under difficult working conditions.
In Row Independent Corn Forage Harvesters, the chimney rotation system can be easily controlled by the operator from inside the tractor with the help of a hydraulic arm. The chimney has the length and height to load the trailer in front while going backwards. Another feature of the chimney, which allows unloading to trucks and higher trailers, is the extension option. Thanks to the blade sharpening system placed in the Row Independent Corn Silage Machine, blade sharpening can be done easily. For road position, the height of the machine can be reduced by folding the upper chimney.
Self-hydraulic system, hydraulic middle arm, hydraulic chimney and cap control, foldable chassis, horizontal lifter helix and joystick control are available as standard in Two Row Independent Corn Forage Harvesters.
