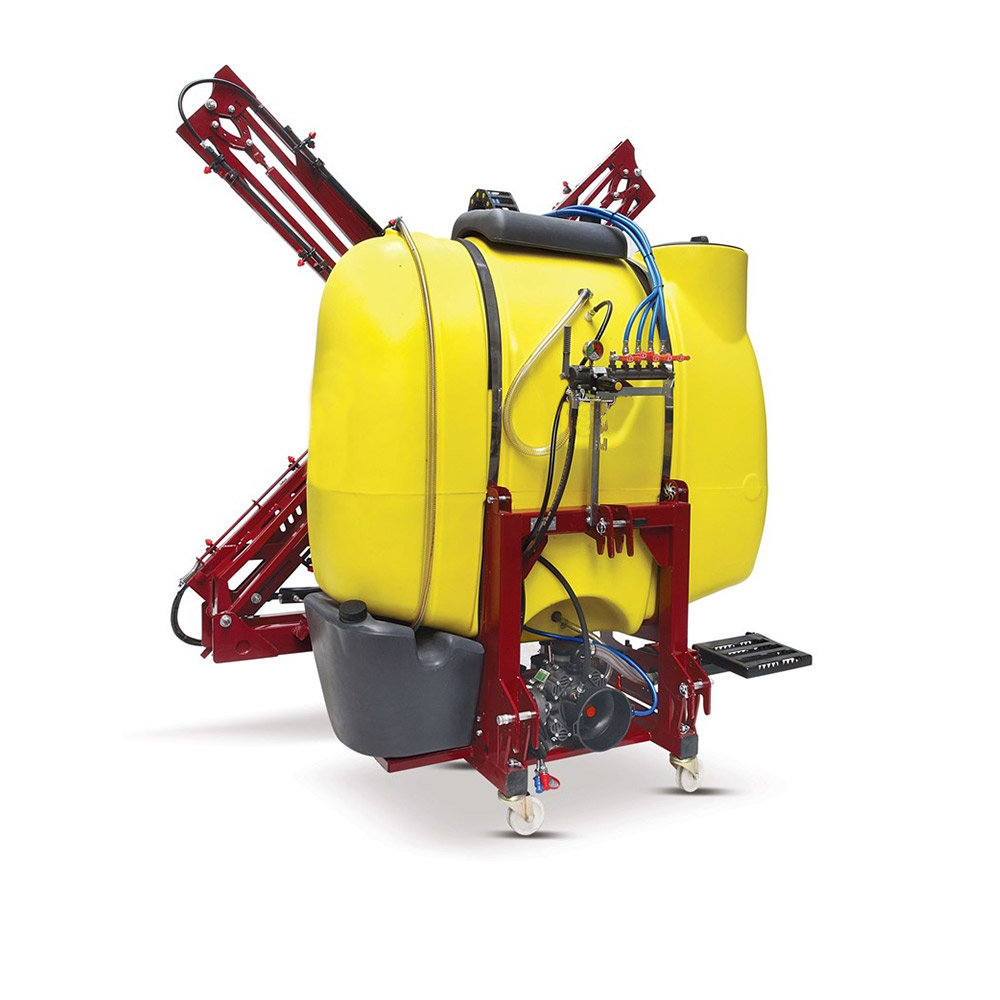

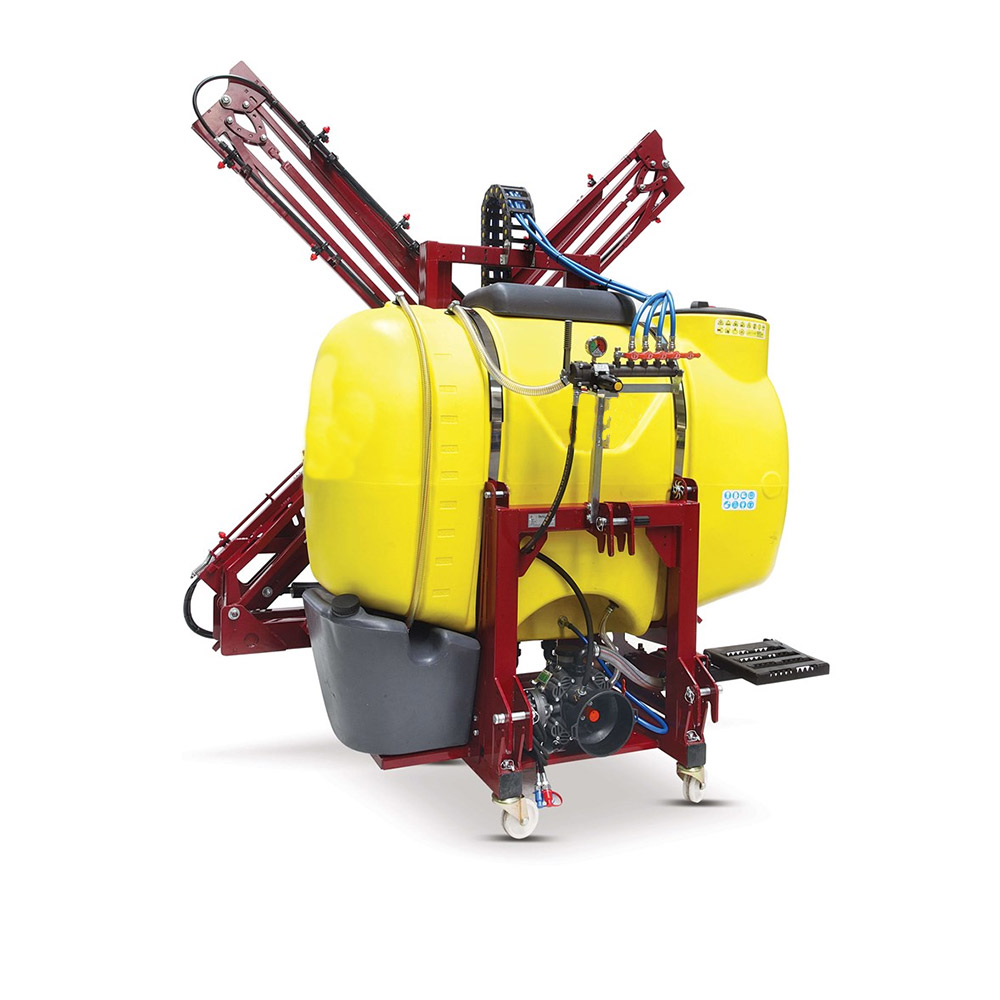

ALFA FULL HYDRAULIC FIELD SPRAYING MACHINE

Alfa Fully Hydraulic Field Sprayer is designed to increase the quality and nutritional value of your products. Alfa Fully Hydraulic Field Sprayer, which can adjust the pesticide level and size properly, has been produced to provide the best service to our farmers. Alfa Fully Hydraulic Field Sprayer is covered by a 2-year warranty.

Features	Unit	ALFA D 8	ALFA D 10	ALFA D 13
Product code		ALFAD0801	ALFAD01001	ALFAD01301
Warehouse Material		Polietlilen	Polietlilen	Polietlilen
Tank Liter	It	800	100	1300
Pump Model	Piston Membranlı	Önallar 96	Önallar 96	Önallar 96
Pump Flow	1/dk	96	96	96
Pump Pressure	Bar	50	50	50
Control Panel		OSR40- 5	OSR40- 5	OSR40- 5
Working Width	m	15	15	15
Nozzle Type		Fan Jet Nozzle	Fan Jet Nozzle	Fan Jet Nozzle
Number of Nozzles	Adet	30	30	30
Distance Between Nozzles	cm	50	50	50
Spraying Arm Height Adjustment		Hidrolik	Hidrolik	Hidrolik
Spraying Arm Folding Adjustment		Hidrolik	Hidrolik	Hidrolik
Tractor Power Required	BG	70-80	70-80	70-80
Working Cycle	dev/dk	540	540	540
Weight	kg	620	635	665
Most	cm	240	240	240
Width	cm	176	176	176
Height	cm	225	225	225
Truck Loading Quantity	adet	3	3	3
Number of Truck Loads	adet	6	6	6
20 Container Loads	adet	3	3	3
40 Container Loads	adet	5	5	5
