BETA B SEMI HYDRAULIC FIELD SPRAYER

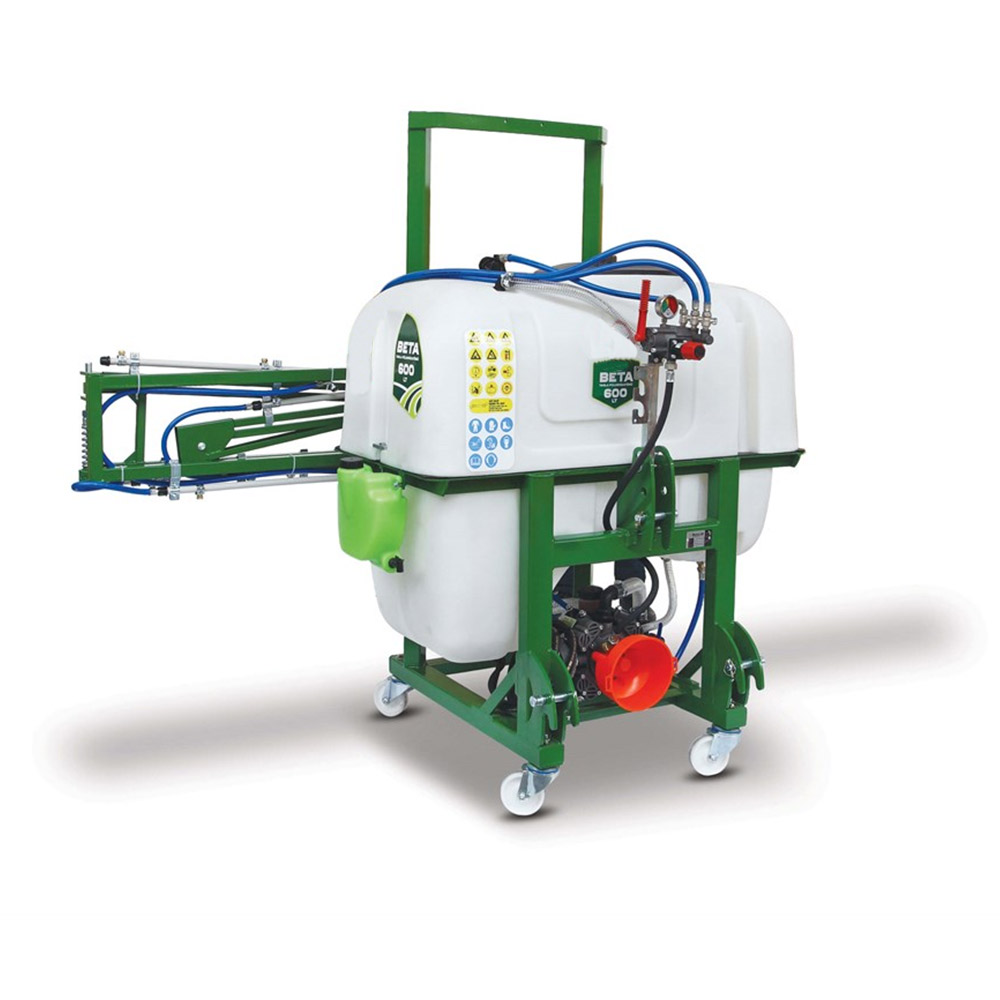

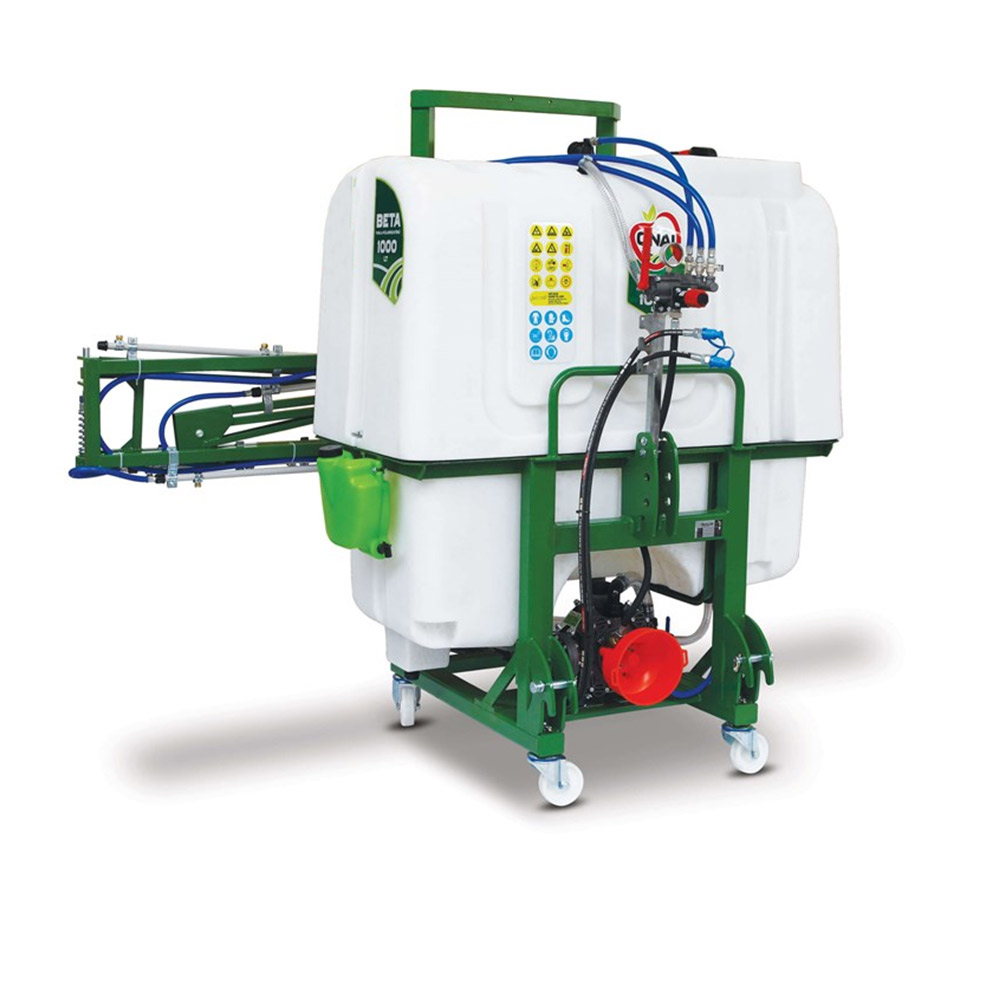

BETA B Semi-Hydraulic Field Sprayer

BETA B Semi-Hydraulic Field Sprayer, tank capacity is 600, 800, 1000 liters. Cereals, corn, beets, pulses, cotton etc. It is used for pest control of plants. Various types of sprayers are available according to spraying needs. Its compact design and semi-hydraulic system make spraying easy and effective. BETA B Semi-Hydraulic Field Sprayer is specially designed for spraying all kinds of pesticides, herbicides and fungicides with wider product range and scope. It provides effective damage by making less spraying for tall ground plants.

Features	Unit	BETA B600	BETA B800	BETA B1000
Product code		BETAB0601	BETAB0801	BETAB01001
Warehouse Material		Polietilen	Polietilen	Polietilen
Tank Liter	It	600	800	1000
Pump Model	Piston Membranlı	Önallar 96	Önallar 96	Önallar 96
Pump Flow	1/dk	96	96	96
Pump Pressure	Bar	50	50	50
Control Panel		OSR 50-3	OSR 50-3	OSR 50-3
Working Width	m	12	12	12
Nozzle Type		Conical Jet Brass	Conical Jet Brass	Conical Jet Brass
Number of Nozzles	Adet	25	25	25
Distance Between Nozzles	cm	50	50	50
Spraying Arm Height Adjustment		Hidrolik	Hidrolik	Hidrolik
Spraying Arm Folding Adjustment		Manuel	Manuel	Manuel
Tractor Power Required	BG	40	40	40
Working Cycle	dev/dk	540	540	540
Weight	kg	250	274	285
Most	cm	135	148	148
Width	cm	100	103	103
Height	cm	217	217	217
Truck Loading Quantity	adet	12	12	11
Number of Truck Loads	adet	21	20	20
20 Container Loads	adet	8	6	6
40 Container Loads	adet	16	16	16
