DELTA A FIELD SPRAYER

DELTA A Field Sprayer

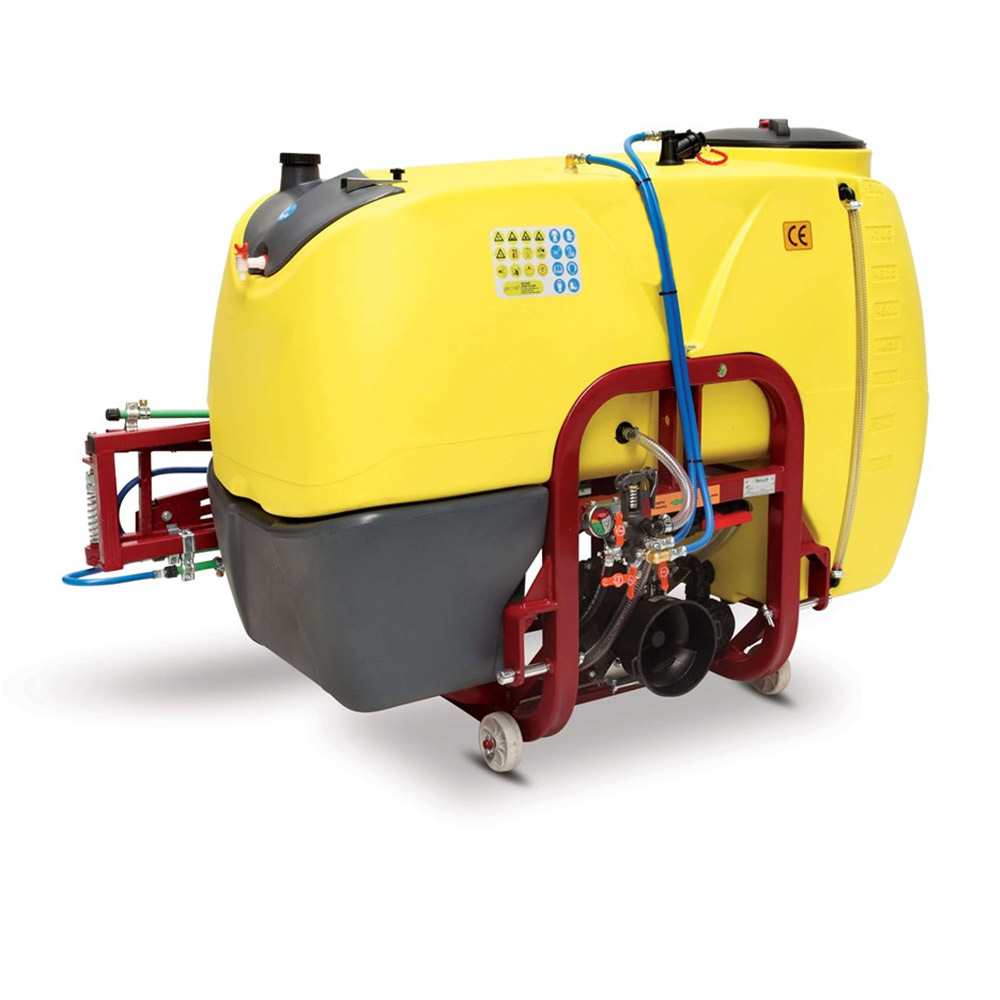

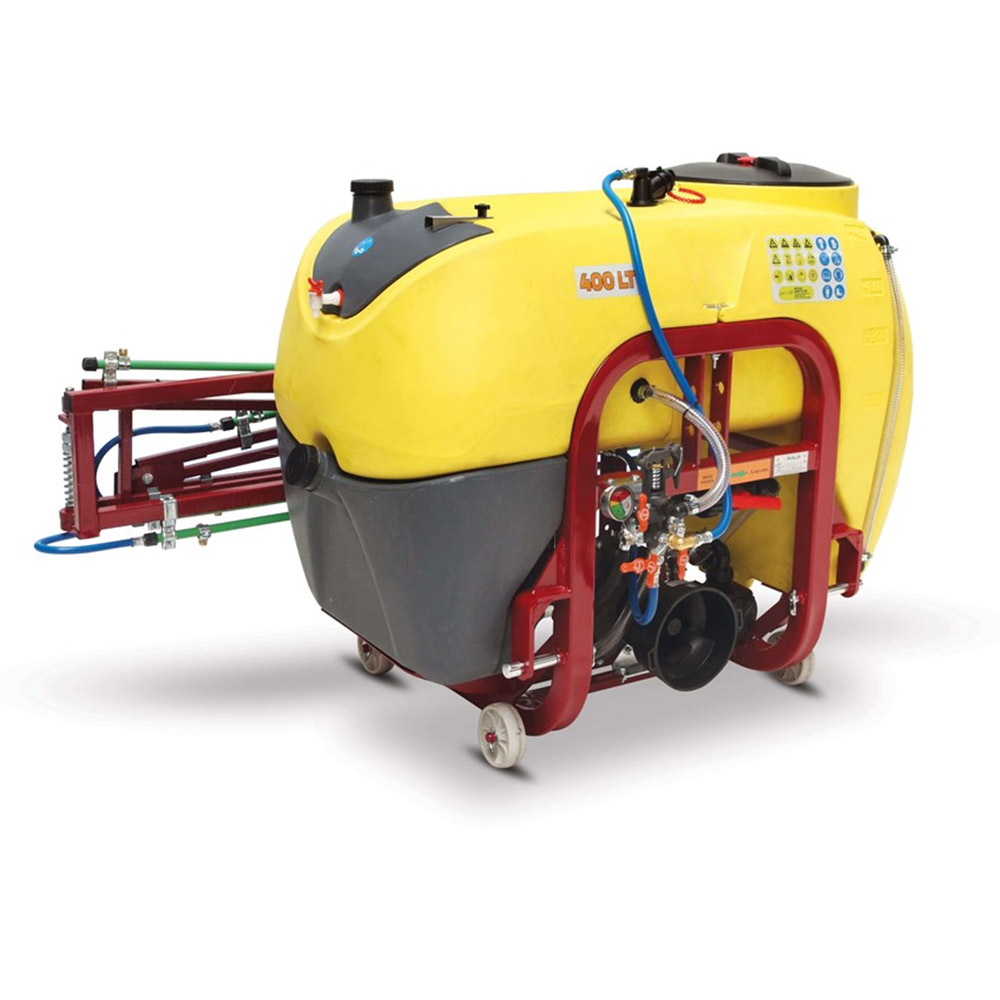

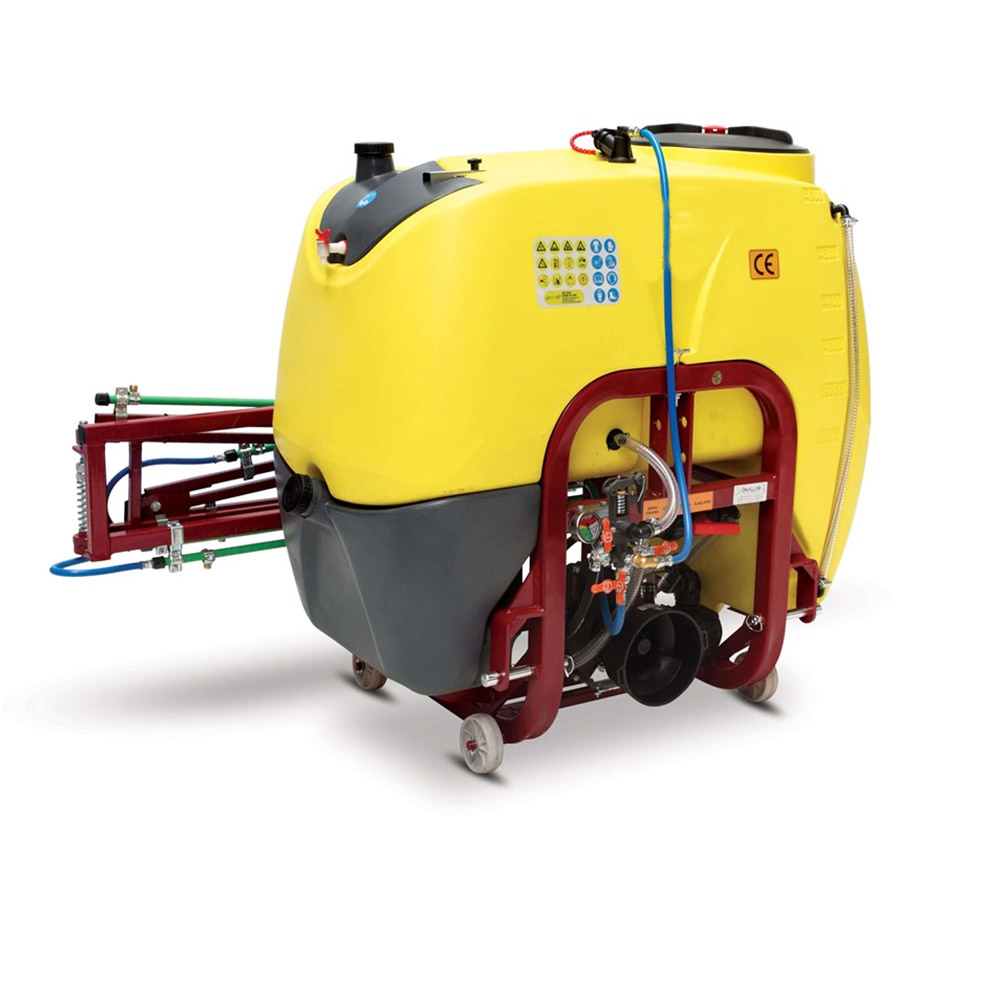

The tank capacity of DELTA A Field Sprayer is 400, 600,800,1000 liters. Cereals, corn, beets, pulses, cotton etc. It is used for pest control of plants. It has different types of nozzles and nozzle selection can be made according to the spraying requirements. Its compact design, hydrostatic and hydraulic system allow it to spray easily and effectively. DELTA A Field Sprayer is specially designed for a wider range and scope of spraying all kinds of pesticides, herbicides and fungicides. It can also be used for spraying the henhouse and barn.

Features	Unit	DELTA A 4	DELTA A 6	DELTA A 8	DELTA A 10
Product code		DELTAA0401	DELTAA0601	DELTAA0801	DELTAA01001
Warehouse Material		Polietilen	Polietilen	Polietilen	Polietilen
Tank Liter	It	400	600	800	1000
Pump Model	Piston Membranlı	Önallar C71	Önallar C71	Önallar C71	Önallar C71
Pump Flow	1/dk	71	71	71	71
Pump Pressure	Bar	50	50	50	50
Control Panel		OG 403	OG 403	OG 403	OG 403
Working Width	m	10	10	10	10
Nozzle Type		Conical Jet Brass	Conical Jet Brass	Conical Jet Brass	Conical Jet Brass
Number of Nozzles	Adet	20	20	20	20
Distance Between Nozzles	cm	50	50	50	50
Spraying Arm Height Adjustment		Manuel	Manuel	Manuel	Manuel
Spraying Arm Folding Adjustment		Manuel	Manuel	Manuel	Manuel
Tractor Power Required	BG	40	40	40	40
Working Cycle	dev/dk	540	540	540	540
Weight	kg	145	156	202	210
Most	cm	135	135	148	148
Most	cm	75	75	75	75
Height	cm	135	150	156	176
Truck Loading Quantity	adet	18	18	15	18
Number of Truck Loads	adet	30	30	27	30
20 Container Loads	adet	16	16	11	16
20 Container Loads	adet	32	32	32	32
