DELTA B SEMI HYDRAULIC FIELD SPRAYER

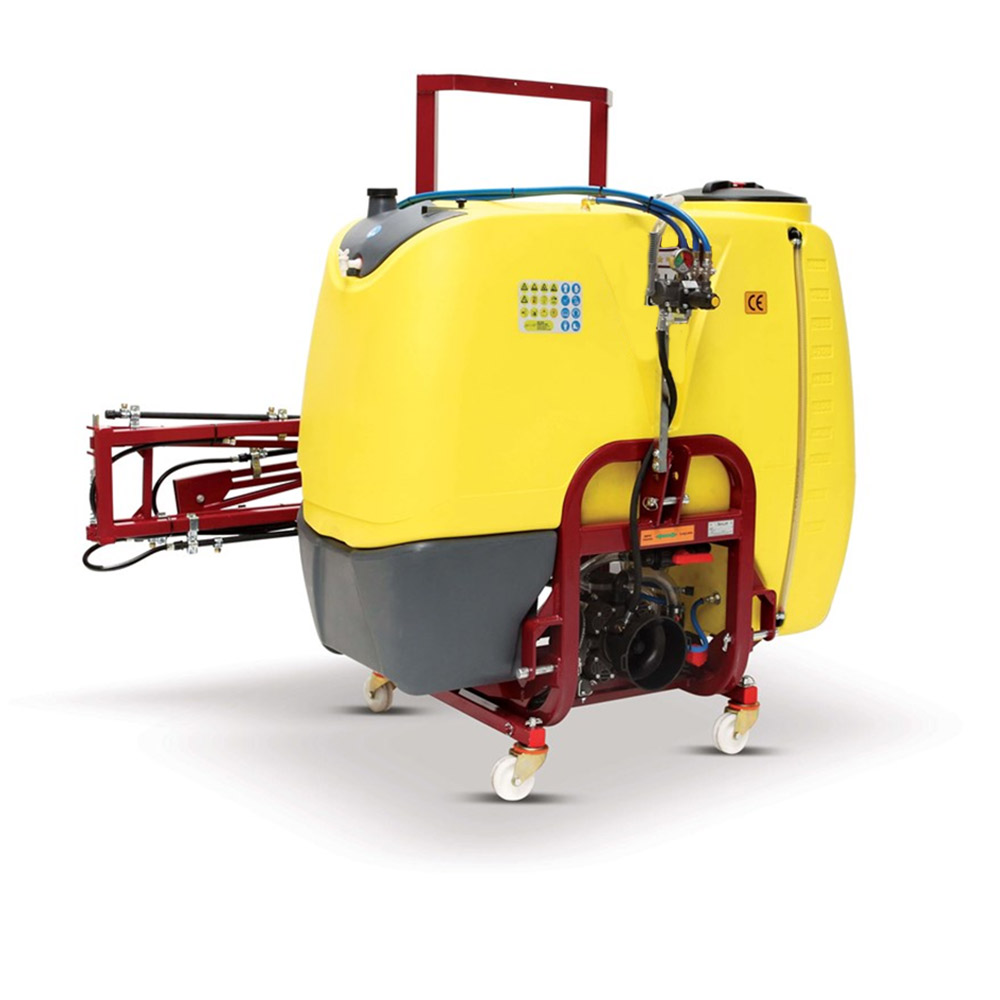

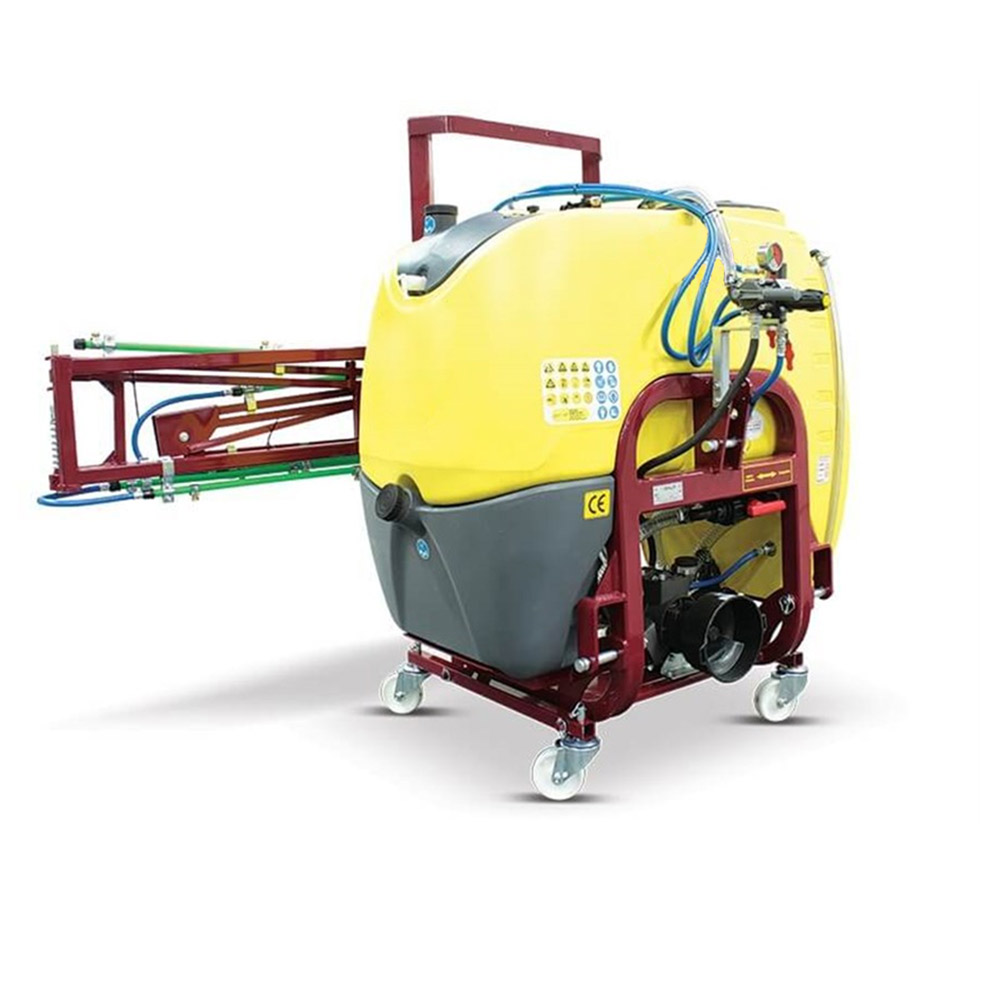

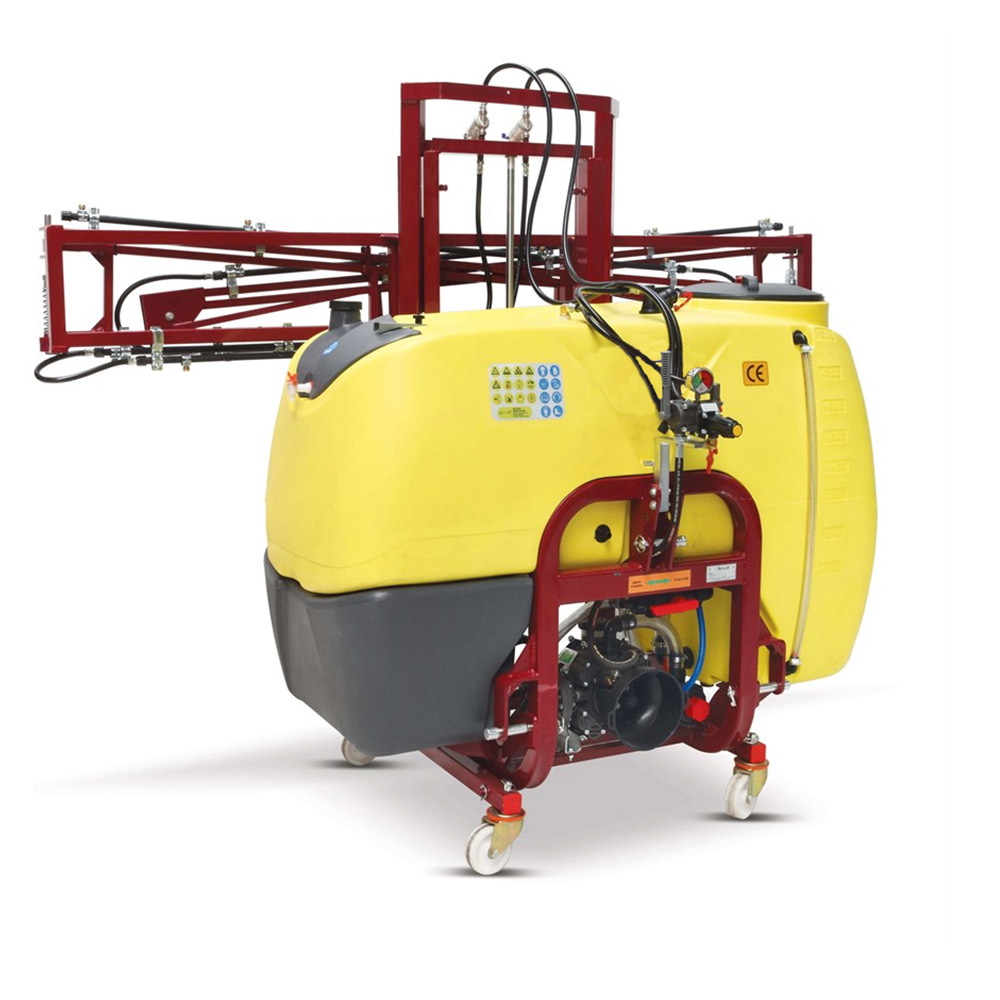

DELTA B Semi-Hydraulic Field Sprayer

The tank capacity of DELTA B Semi-Hydraulic Field Sprayer is 400,600,800,1000 liters. It is used for pest control. It is suitable to be used in plants such as sunflower, corn, cotton, cereals, pulses. Different types of sprayers are available according to your needs. Its compact design, semi-hydraulic system allows it to spray easily and effectively. DELTA B Semi-Hydraulic Field Sprayer is specially designed for wider product range and scope for spraying all kinds of pesticides, herbicides and fungicide.

Features	Unit	DELTA B 4	DELTA B 6	DELTA B 8	DELTA B 10
Product code		DELTAB0401	DELTAB0601	DELTAB0801	DELTAB01001
Warehouse Material		Polietilen	Polietilen	Polietilen	Polietilen
Tank Liter	It	400	600	800	1000
Pump Model	Piston Membranlı	Önallar C96	Önallar C96	Önallar C96	Önallar C96
Pump Flow	1/dk	96	96	96	96
Pump Pressure	Bar	50	50	50	50
Control Panel		OSR50-3	OSR50-3	OSR50-3	OSR50-3
Working Width	m	12	12	12	12
Nozzle Type		Conical Jet Brass	Conical Jet Brass	Conical Jet Brass	Conical Jet Brass
Number of Nozzles	Adet	33	33	33	33
Distance Between Nozzles	cm	50	50	50	50
Spraying Arm Height Adjustment		Hidrolik	Hidrolik	Hidrolik	Hidrolik
Spraying Arm Folding Adjustment		Manuel	Manuel	Manuel	Manuel
Tractor Power Required	BG	40	40	40	40
Working Cycle	dev/dk	226	250	274	285
Weight	kg	625	642	651	670
Most	cm	135	135	148	148
Width	cm	100	100	103	103
Height	cm	217	217	217	217
Truck Loading Quantity	adet	12	12	11	11
Number of Truck Loads	adet	21	21	20	20
20 Container Loads	adet	8	8	6	6
40 Container Loads	adet	16	16	16	16
