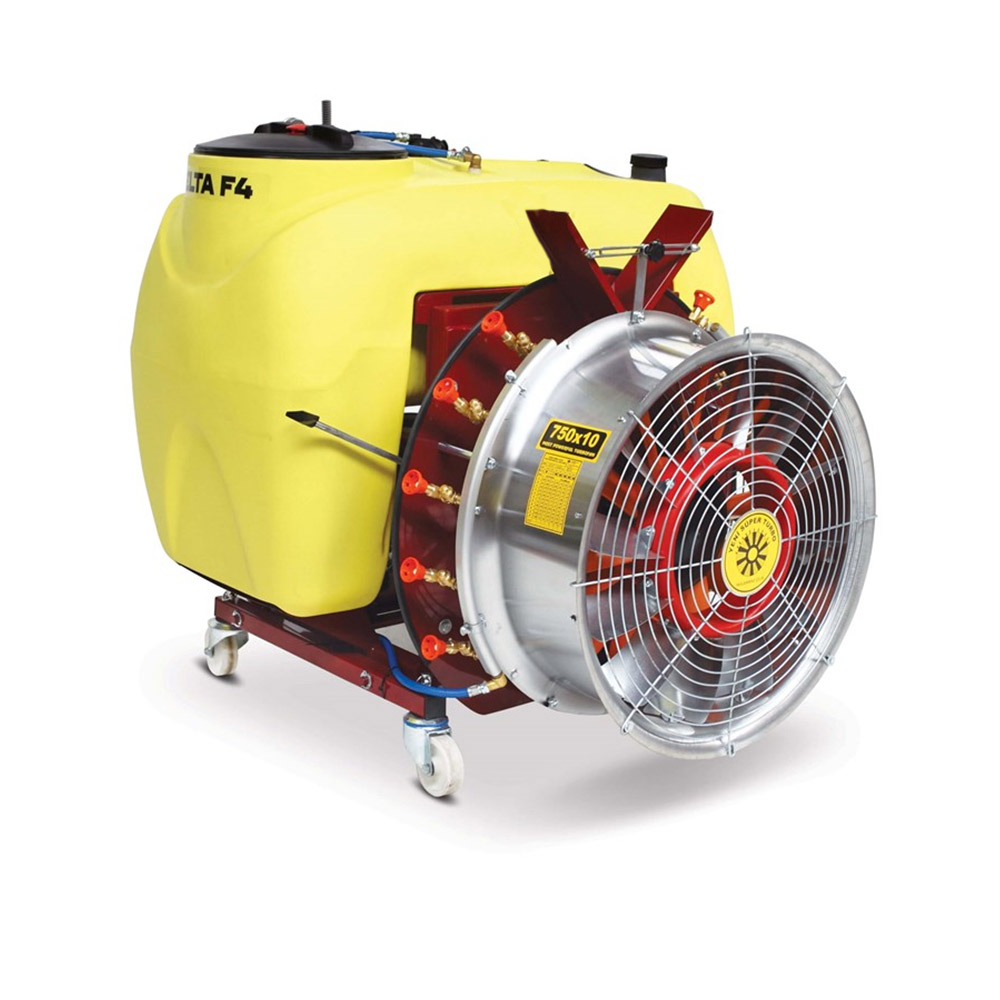

DELTA F TURBO ATOMIZER SPRAYING MACHINE

Delta F Turbo Atomizer Sprayer is produced with 400, 600, 800 and 1000 liter options. It is also used to combat harmful insects and diseases that can infect plants. It can be used in the cultivation of plants such as corn, cereals, pulses. With Delta F Turbo Atomizer Sprayer, spraying the plant is provided effectively.

FEATURES	UNIT	DELTA F 4	DELTA F 6	DELTA F 8	DELTA F 10
Product code		DELTAF0401	DELTAF0601	DELTAF0801	DELTAF01001
Warehouse Material		Polietilen	Polietilen	Polietilen	Polietilen
Tank Liter	It	400 600 800 1000
Pump Model	Piston Membranlı	Önallar C96	Önallar C96	Önallar C96	Önallar C96
Pump Flow	1/dk	96	96	96	96
Pump Pressure	Bar	50	50	50	50
Control Panel		OSR50- 3	OSR50- 3	OSR50- 3	OSR50- 3
Working Width	m	12,16	12,16	12,16	12,16
Nozzle Type		Conical Jet Brass	Conical Jet Brass	Conical Jet Brass	Conical Jet Brass
Number of Nozzles	Adet	10	10	10	10
Fan Diameter	cm	75	75	75	75
Tractor Power Required	BG	50	50	50	50
Working Cycle	dev/dk	540	540	540	540
Air Flow	m3/h	5400	5400	5400	5400
Weight	kg	293	293	321	332
Most	cm	135	135	148	148
Width	cm	142	142	160	160
Height	cm	166	166	173	195
Truck Loading Quantity	adet	7	7	7	7
Number of Truck Loads	adet	12	12	12	12
20 Container Loads	adet	10	10	10	10
40 Container Loads	adet	24	24	24	24
