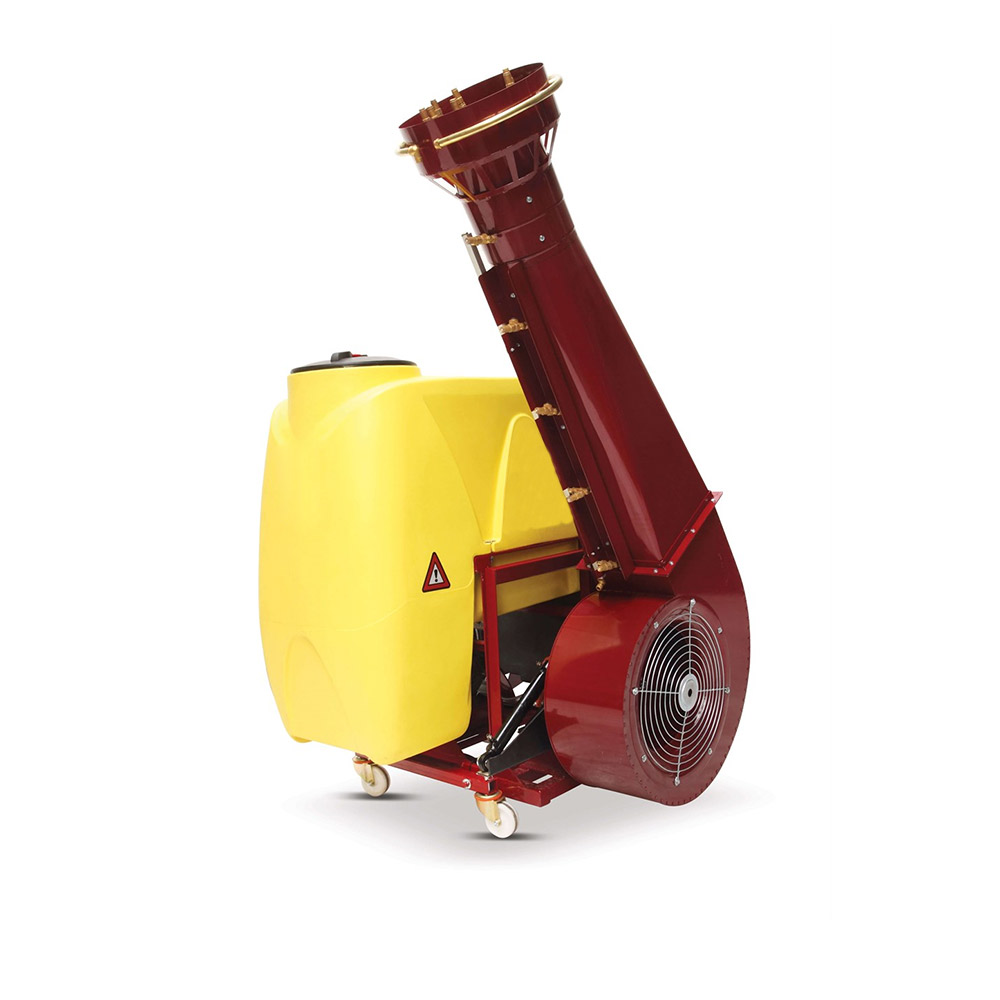

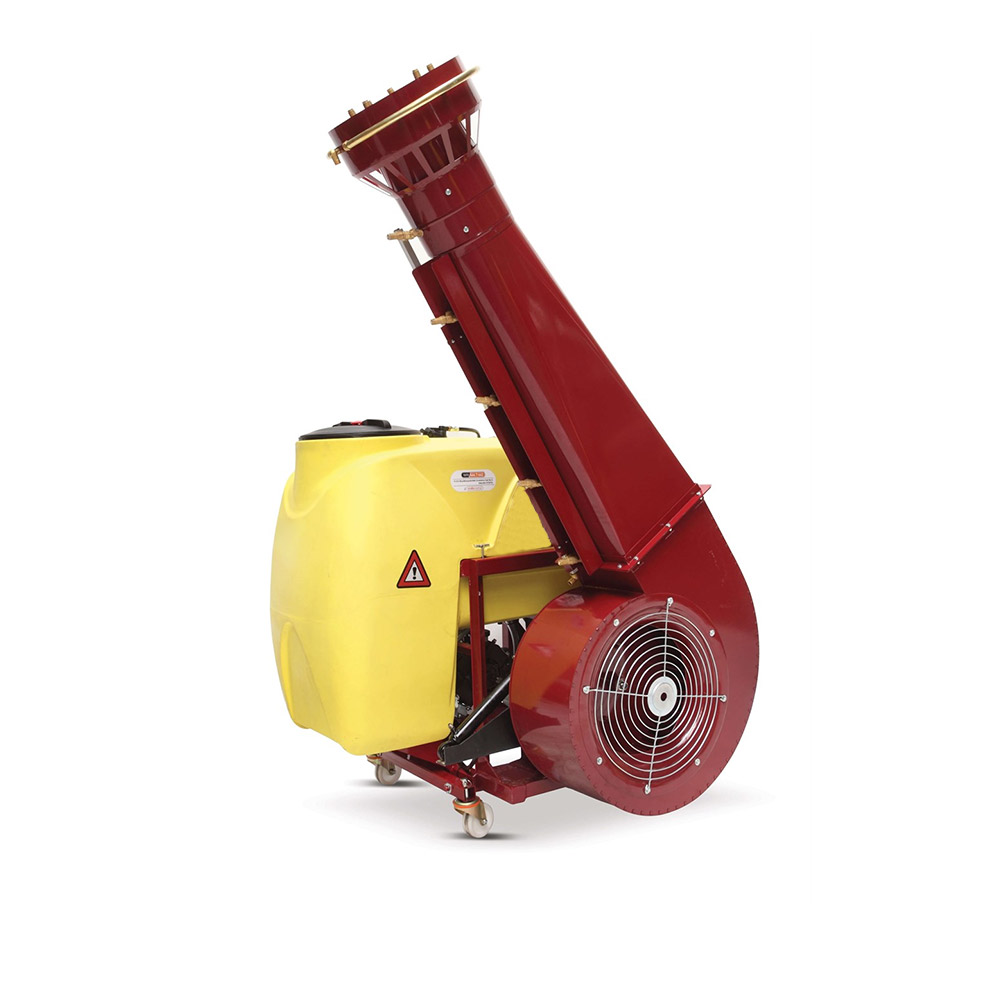

DELTA G Snail TYPE TURBO ATOMIZER

Delta G Snail Type Turbo Atomizer is produced with 400, 600, 800 and 1000 liter options. It is coated with powder paint against corrosion, it is under warranty for 2 years. It is also used to combat harmful insects and diseases that can infect plants. It can be used in the cultivation of plants such as corn, cereals, pulses. With the Delta G Snail Tip Turbo Atomizer, the spraying of the plant is provided effectively.

FEATURES	UNIT	DELTA G 4	DELTA G 6	DELTA G 8	DELTA G 10
Product code		DELTAG0401	DELTAG0601	DELTAG0801	DELTAG01001
Warehouse Material		Polietilen	Polietilen	Polietilen	Polietilen
Tank Liter	It	400	600	800	1000
Pump Model	Piston Membranlı	Önallar C96	Önallar C96	Önallar C96	Önallar C96
Pump Flow	1/dk	145	145	145	145
Pump Pressure	Bar	50	50	50	50
Control Panel		OTR 17	OTR 17	OTR 17	OTR 17
Working Width	m	30-35	30-35	30-35	30-35
Nozzle Type		Atomizer With Brass Stopper	Atomizer With Brass Stopper	Atomizer With Brass Stopper	Atomizer With Brass Stopper
Number of Nozzles	Adet	15	15	15	15
Fan Diameter	CM	84	84	84	84
Tractor Power Required	BG	70-90	70-90	70-90	70-90
Working Cycle	dev/dk	540	540	540	540
Air Flow	m3/h	66000	66000	66000	66000
Weight	kg	396	420	438	450
Most	cm	135	135	148	148
Width	cm	140	140	148	148
Height	cm	260	260	260	260
Truck Loading Quantity	adet	5	5	5	5
Number of Truck Loads	adet	9	9	9	9
20 Container Loads	adet	6	6	6	6
40 Container Loads	adet	12	12	12	12
