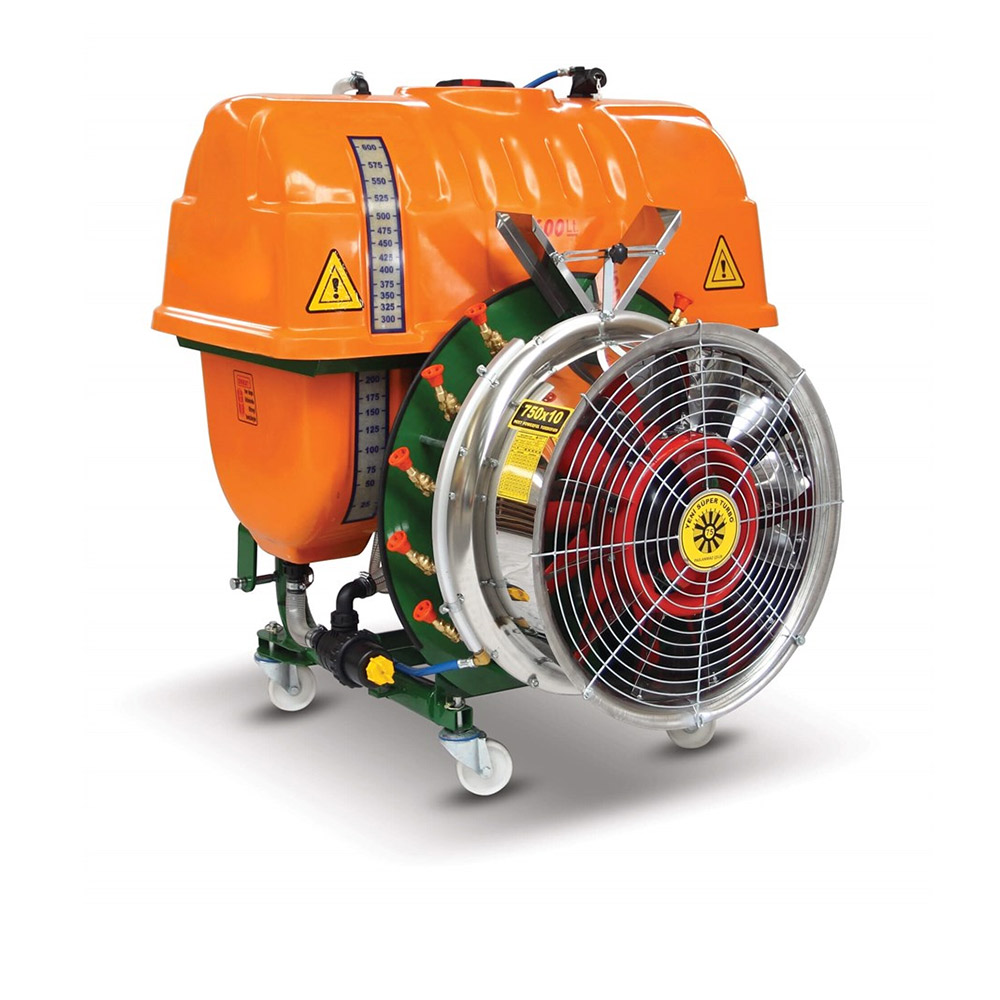

FABLE F TURBO ATOMIZER SPRAYING MACHINE

Fable F Turbo Atomizer Sprayer is produced with 400, 600 liter options. Fable F Turbo Atomizer Sprayer has been specially designed and produced to increase the quality and nutritional value of your products, and to provide a shot by adjusting the drug level with a proper measure. Fable F Turbo Atomizer Sprayer is guaranteed for 2 years.

FEATURES	UNIT	FABLE F 400	FABLE F 600
Product code		FABLEF1001	FABLEF1601
Warehouse Material		Polyester	Polyester
Tank Liter	It	400	600
Pump Model	Piston Membranlı	Önallar C96	Önallar C96
Pump Flow	1/dk	96	96
Pump Pressure	Bar	50	50
Control Panel		OPR 40-3	OPR 40-3
Working Width	m	16	16
Nozzle Type		Atomizer With Brass Stopper	Atomizer With Brass Stopper
Number of Nozzles	Adet	5+5	5+5
Fan Diameter	cm	75	75
Working Width	cm	12-16	12-16
Tractor Power Required	BG	50	50
Air Flow	m3/h	54000	54000
Working Cycle	dev/dk	540	540
Weight	kg	217	217
Most	cm	138	138
Width	cm	150	150
Height	cm	145	145
Truck Loading Quantity	adet	7	7
Number of Truck Loads	adet	12	12
20 Container Loads	adet	10	20
40 Container Loads	adet	24	24

FEATURES	UNIT	FABLE F 1000	FABLE F 1600	FABLE F 2000
Product code		FICUSF1001	FICUSF1601	FICUSF1601
Warehouse Material		Polyester	Polyester	Polyester
Tank Liter	It	1000	1600	2000
Pump Model	Piston Membranlı	Önallar C145	Önallar C145	Önallar C145
Pump Flow	1/dk	145	145	145
Pump Pressure	Bar	50	50	50
Control Panel		OTR 17	OTR 17	OTR 17
Working Width	m	16	16	16
Nozzle Type		Atomizer With Brass Stopper	Atomizer With Brass Stopper	Atomizer With Brass Stopper
Number of Nozzles	Adet	16	16	16
Fan Diameter	cm	85	85	85
Working Width	cm	20-24	20-24	20-24
Tractor Power Required	BG	70	70	70
Air Flow	m3/h	66000	66000	66000
Working Cycle	dev/dk	516	550	550
Weight	kg	168	178	180
Most	cm	365	365	410
Width	cm	135	135	135
Heigh	cm	166	173	195
Truck Loading Quantity		3	3	2
Number of Truck Loads	adet	6	6	5
40 Container Loads	adet	14	14	10
